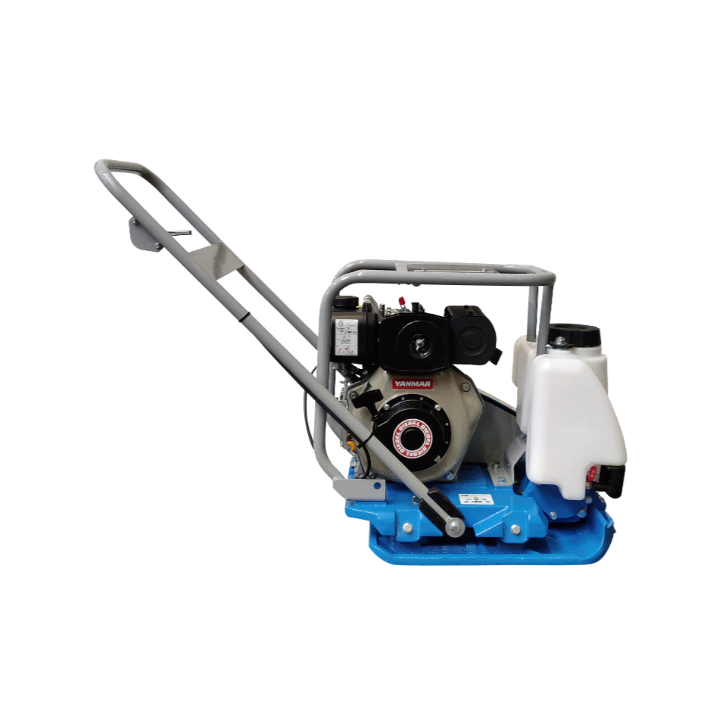

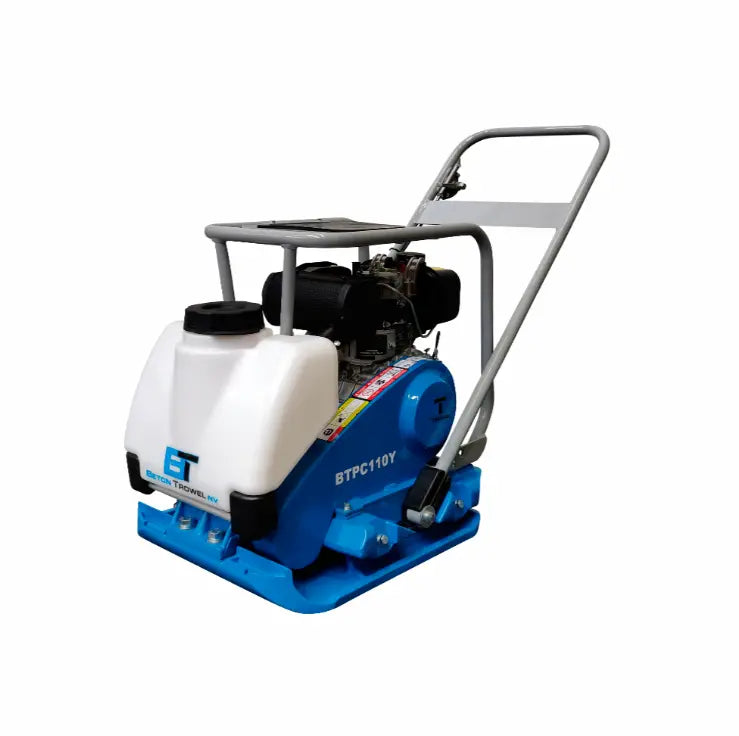

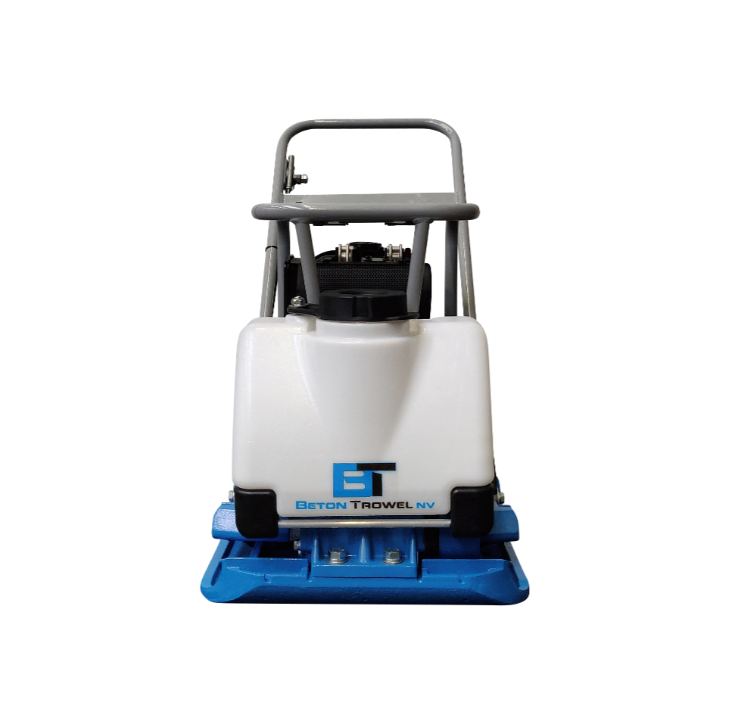

20-Inch Forward Plate Compactor with Water Tank Yanmar L48 Diesel
20-Inch Forward Plate Compactor with Water Tank Yanmar L48 Diesel
20-Inch Forward Plate Compactor with Water Tank Yanmar L48 Diesel
SKU BPTC110Y

20-Inch Forward Plate Compactor with Water Tank Yanmar L48 Diesel

by Beton Trowel
✔ FREE Nationwide Shipping
✔ Financing Available
✔ Commercial Contractor Equipment
✔ Fast Delivery Available

Built for Professional Soil & Asphalt Compaction

Designed for contractors who need reliable compaction performance, excellent coverage, and durable diesel-powered operation for asphalt, pavers, and soil applications.

✔ Asphalt & paving contractors ✔ Soil and gravel compaction ✔ Driveways & sidewalks ✔ Paver installation projects ✔ Commercial and residential job sites
Save 20% Save 20%
$4,499.00
$4,499.00 - $4,499.00
$4,499.00
$3,595.00
$3,595.00 - $3,595.00
$3,595.00
✔ In Stock & Ready to Ship
⚠ Limited Stock Available — Order Soon

Authorized Dealer

  • 100% Genuine Original Equipment
  • Ships Direct from Manufacturer
  • 30 Day Return Policy (Conditions Apply)

Description

The BPTC110Y forward plate compactor is designed for durability, with a cast aluminum guard to protect the clutch, and a ductile iron base for added longevity. This compactor has a fully enclosed frame, which protects the Yanmar L48 diesel engine for maximum reliability. The plate covers a 19.6 by 20.8 In. area, providing great coverage, with a travel speed between 65 to 82 feet per minute. It’s even great on slopes up to a 35% climb gradient, and easily handles dry soil with the onboard water tank for spraying loose soil.

Features + Benefits

✔ Powered by a reliable Honda GX160 engine
✔ Engine is protected from sand, soil, and other small debris by an enclosed frame
✔ Cast iron aluminum throttle and ductile iron base provide extra longevity
✔ Heavy-duty construction supports 3,372 lbs. of compaction force
✔ Covers ground quickly with a travel speed of 65 to 82 feet per minute, at up to 35% climbing gradient
✔ Onboard water tank makes spraying and compacting dry, loose soil easy
✔ 19.6 by 20.8 in. plate provides great coverage for compaction



Specifications

Equipment Type Forward Plate Compactor
Centrifugal Force (Lb.) 4,496 lb.
Dimensions 25 in. L x 25 in. W x 40 in. H
Engine L48 Diesel
Engine Brand Yanmar
Gradient Climb 35%
Horsepower 4.7 HP
Plate Size L x W (In.) 20.9 in. L × 19.7 in. W
Travel Speed 82 Ft./Min.
Vibrations Per Minute 6000
Warranty 1 Year
Water Tank Yes
Weight 243 lb.
